MASSAMAGRELL, VALENCIA

ROAD CV-32 DE LA GOMBALDA

Arbeitsbereich

Verkehrsinfrastrukturen

Kunde

CONSELLERIA DE POLÍTICA TERRITORIAL, OBRAS PÚBLICAS Y MOVILIDAD

Jahr des Abschlusses

2019

Haushalt

€ 12. 828. 131,20 (PEB)

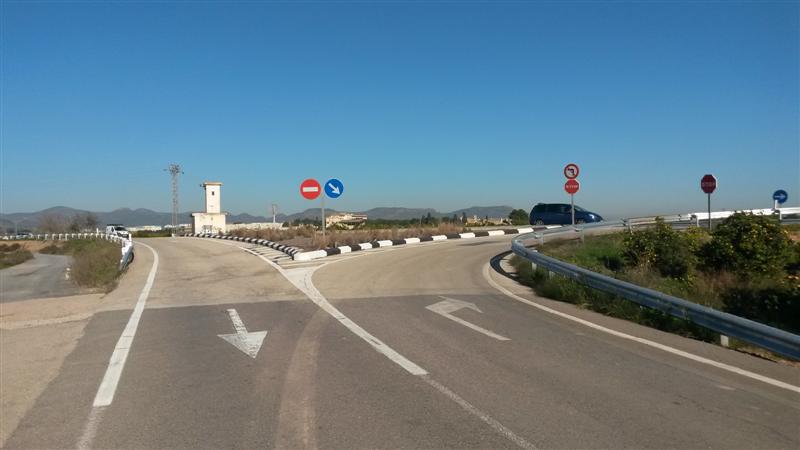

The purpose of this Construction Project is to define the construction works for the doubling of the CV-32, De la Gombalda road, between Pks 3+500 and 5+500, in the municipalities of Museros and Massamagrell. This section is an area where there are frequent queues at peak times due to the capacity constraints it entails in relation to the already duplicated contiguous sections, as well as to existing level intersections. The CV-32 road project in La Gombalda also includes the construction of a bike lane parallel to the road on the north side

The project covers a track length of 2 km, which includes the following works:
  • Previous Studies of Topography, Geology and Geotechnics, Traffic and Planning.
  • Definition of the layout and dimensioning of the road surface.
  • Floodability study.
  • Dimensioning of drainage and factory works.
  • Design of structures: 1 viaduct 132 m long, 1 viaduct 60 m long and a metal walkway 40 m long.
  • Signalling, marking and containment systems.
  • Replacement of affected services: power lines, telecommunications, supply and irrigation.
  • Design of the lighting installation.
  • Design of gardening and irrigation network.
  • Environmental Processing.
